GIB BLOCK
- Product Function
- Use in Linear Way Fixed and accuracy adjustment

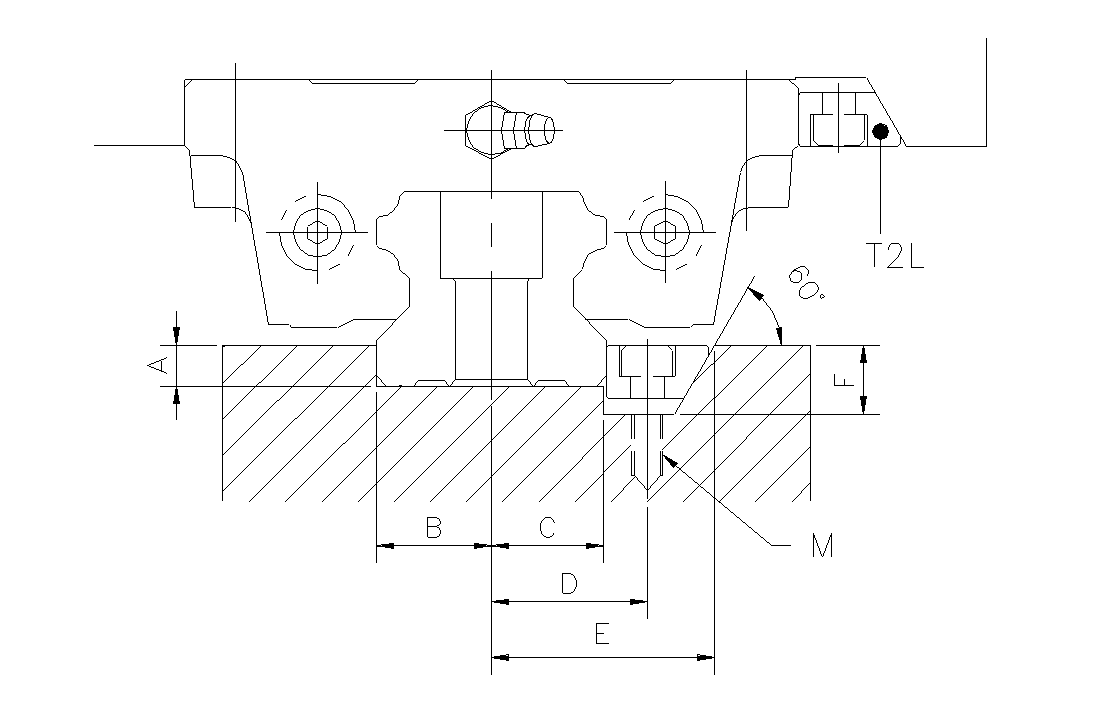

Dimension Unit:mm
| TYPE |
A |
B |
C |
D |
E |
F |
M |
| T-0 |
15 |
7.5 |
15 |
6 |
8 |
10.96 |
φ5.5×φ9.5×5.4 |
| T-1S |
20 |
10 |
16 |
7 |
9.4 |
11.7 |
M6×P1.0 |
| T-1 |
20 |
10 |
16 |
7 |
9.4 |
11.7 |
φ5.5×φ9.5×5.4 |
| T-2 |
25 |
12.5 |
20 |
8 |
10.5 |
15.1 |
φ6.6×φ11×6.5 |
| T-3 |
30 |
15 |
24 |
9 |
13.6 |
17.3 |
φ9×φ14×8.6 |
| T-4 |
30 |
15 |
30 |
10 |
16 |
25.5 |
φ9×φ914×8.6 |
Bolt Torque kgf-cm
| Bolt |
Torque |
| M5 |
90 |
| M6 |
140 |
| M8 |
310 |
Design Suggestion Unit:mm
| TYPE |
A |
B |
C |
D |
E |
F |
M |
S |
SCREW |
| HSR20 |
3 |
10 |
9.5 |
17 |
27.155 |
12.4 |
M5 |
T-1 |
M5 |
| HSR25 |
4 |
11.5 |
11 |
18.5 |
28.655 |
12.4 |
M5 |
T-1 |
M5 |
| HSR30 |
5 |
14 |
13.5 |
21 |
31.155 |
12.4 |
M5 |
T-1 |
M5 |
| HSR35 |
5 |
17 |
16.5 |
25 |
38.155 |
13.5 |
M6 |
T-2 |
M6 |
| HSR45 |
7 |
22.5 |
22 |
30.5 |
43.655 |
13.5 |
M6 |
T-2 |
M6 |
| HSR55 |
10 |
26.5 |
26 |
35.5 |
51.655 |
16.6 |
M8 |
T-3 |
M8 |
| HSR65 |
10 |
31.5 |
31 |
40.5 |
56.655 |
16.6 |
M8 |
T-3 |
M8 |
